PVC泡沫
分享：
PVC泡沫是一種剛性交聯閉孔的PVC結構泡沫材料。以乙烯基聚合物為基礎，通過貫穿的芳香酰胺聚合網絡的合金泡沫材料。習慣稱為交聯PVC泡沫芯材，是復合材料夾層結構的理想芯材。該產品綜合機械性能優異，化學性質穩定，具有很高的性價比，在風電，和水上船艇等領域已經有著廣泛的應用。
產品特點
◆ 密度范圍廣：40-250 kg/m3
◆具有優良的比剛度，比強度
◆ 抗疲勞、抗沖擊性能優異
◆ 保溫隔熱，阻燃性能良好
◆ 閉孔率高，吸膠量低，韌性好
◆低吸水率，不易受潮，霉變
◆ 各向同性，性能均勻穩定
◆ 尺寸穩定性好，易于加工
◆ 耐溫范圍廣：工藝溫度-240℃~100℃，長期使用溫度-240℃~80℃
Product features | Applications |
Excellent specific stiffness and specific strength Good fatigue and impact resistance Thermal insulation Low water absorption | Wind energy: Rotor blades, nacelles |
Product Description
Product Performance
Strucell P is a cross-linked rigid structural PVC foam material. Strucell P, as a close cell foam, based on vinyl polymer, modified with the throughout Aramids link. It is the compounding chemical material based on PVCand PUR. It is said as the cross-linked PVC foam core, in the international practice.
Strucell P can be used as the core material in the sandwich structure.
We accept customized type which used for special applications like luxury boat building, modular building,wind electricity...
Product Picture
 |  |  |
 |  |  |  P300 |
Product Parameters
Item | Standard | Unit | P48 | P60 | P80 | P100 | P130 | P200 | P250 | |
Density | ISO 845 | Kg/m3 | Average | 48 | 60 | 80 | 100 | 130 | 200 | 250 |
Tolerance | 43-55 | -6,+9 | ±10 | ±10 | ±15 | ±20 | ±30 | |||
Compression Strength | ASTM D1621 ? | MPa | Average | 0.60 | 0.9 | 1.4 | 2.0 | 3.0 | 4.8 | 6.2 |
Minimum | (0.50) | (0.7) | (1-15) | (1-65) | (2.4) | (4.2) | (NA) | |||
Compression Modulus | ASTM D 1621 | MPa | Average | 48 | 70 | 90 | 135 | 170 | 240 | 300 |
Minimum | (35) | (60) | (80) | (115) | (145) | (200) | (NA) | |||
Tensile Strength | ASTM D 1623 | MPa | Average | 0.95 | 1.8 | 2.5 | 3.5 | 4.8 | 7.1 | 9.2 |
Minimum | (0.8) | (1-5) | (2.2) | (2.5) | (3.5) | (6.3) | (NA) | |||
Tensile | ASTM D 1623 | MPa | Average | 35 | 75 | 95 | 130 | 175 | 250 | 320 |
Modulus | Minimum | (28) | (57) | (85) | (105) | (135) | (210) | (NA) | ||
Shear | ASTM C 273 | MPa | Average | 0.55 | 0.76 | 1.15 | 1.6 | 2.2 | 3.5 | 4.5 |
Strength | Minimum | (0.50) | (0.63) | (0.95) | (1.4) | (1.9) | (3.2) | (NA) | ||
Shear | ASTM C 273 | MPa | Average | 16 | 20 | 27 | 35 | 50 | 85 | 104 |
Modulus | Minimum | (14) | (16) | (23) | (28) | (40) | (75) | (NA) | ||
Shear Elongation | ASTM C 273 | % | Average Minimum | 10 (8) | 20 (10) | 30 (15) | 40 (25) | 40 (30) | 40 (30) | 40 (NA) |
Width | mm | ±5 | 1270 | 1120 | 1010 | 940 | 840 | 740 | 700 | |
Standard | Length | mm | ±5 | 2730 | 2350 | 2160 | 2040 | 1880 | 1600 | 1500 |
Size | Thickness | mm | ±0.5 | 5~80 | 5~70 | 3~65 | 3~60 | 3~50 | 3~40 | 3~40 |
Surface Treatment

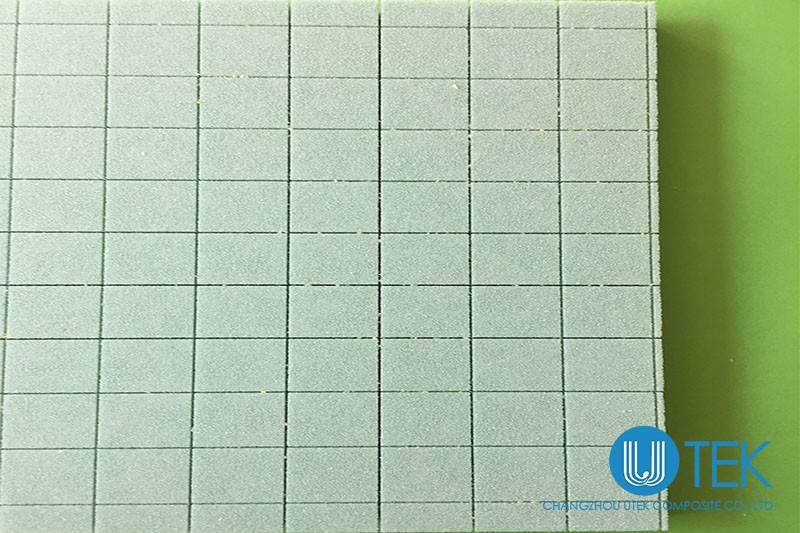

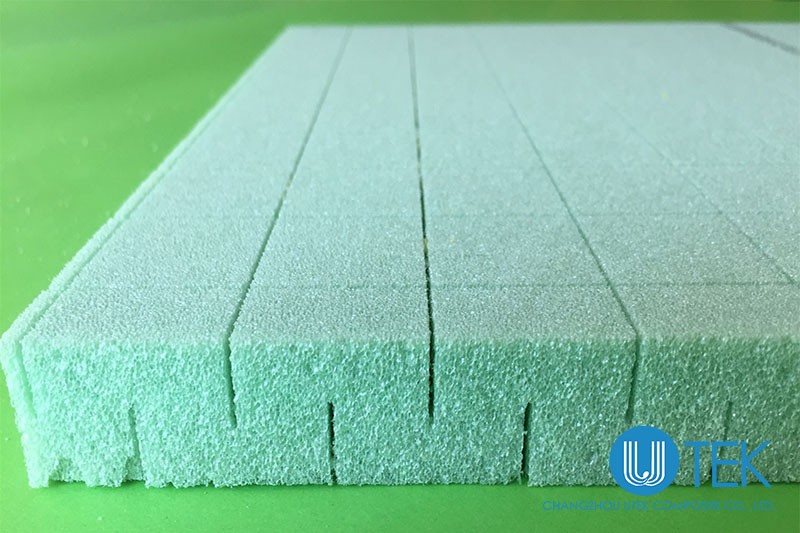

 Plain/Flat |  Groove/Perforate |  Contour Board |
Application
 |  |  |  |
 |  |  |  |
Factory Tour

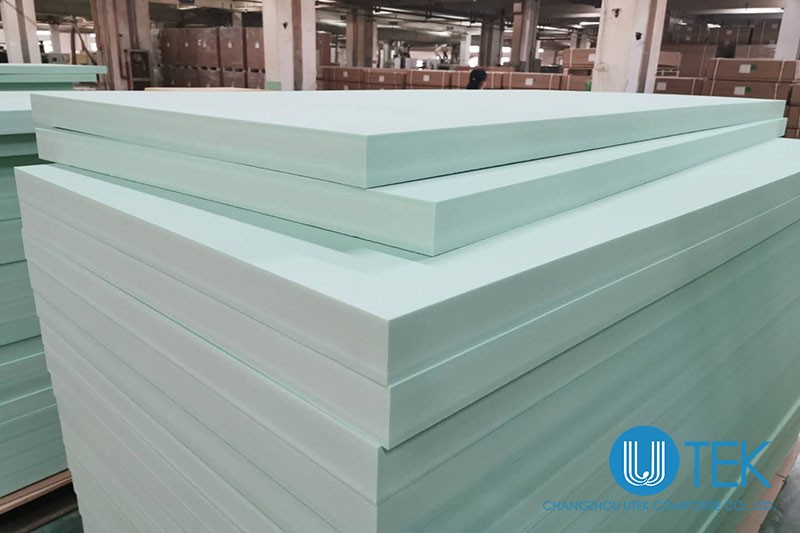

 Block Storage |  PVC Foam Sheet Storage |  Label |  Packing |
